Scenik Products

Scenik Frameless Glass Fencing and
Frameless Balustrade

Why hide a pristine pool or water feature behind a regular fence, when you can open it up
for uninhibited viewing pleasure?

Scenik Glass Pool Fencing

Scenik frameless glass fencing is constructed using 1200mm high by 12mm thick toughened safety glass with polished bevel edges.

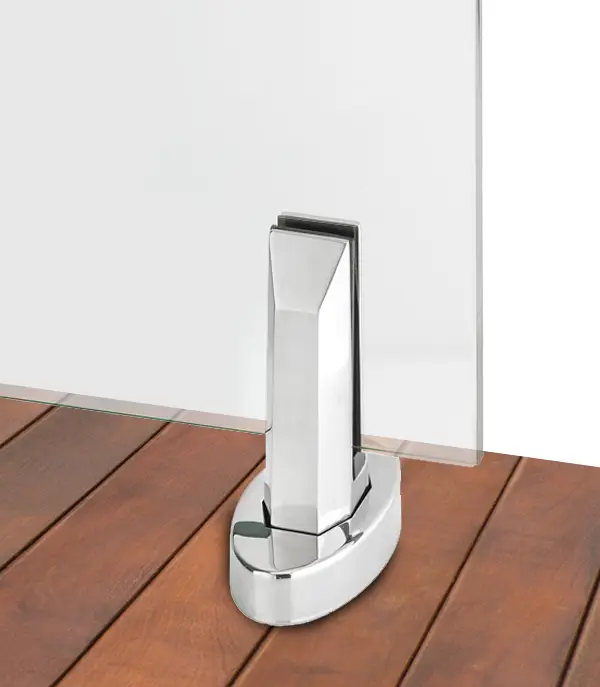

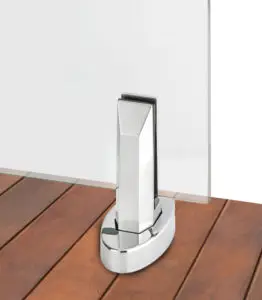

The panels are fitted into corrosion resistant aluminium or stainless steel spigots (square or round), which can be installed on to many different sufaces such as Tiles, Concrete, Timber decking.

Our gates use a self-closing hinge with a side pull latch, we offer a standard Hinge and latch set or for the extra few dollars you are far better to upgrade to our High Performance Stainless Steel Duplex Hinge and latch Set that has been tested for over 10,000 cycles.

All panels are 1200mm HIGH and 12mm THICK glass (EXCEPT GATE)

Glass Infill Panel Sizes

panel

500mm WIDE

panel

600mm WIDE

panel

700mm WIDE

panel

800mm WIDE

panel

900mm WIDE

panel

1000mm WIDE

panel

1050mm WIDE

panel

1100mm WIDE

panel

1150mm WIDE

panel

1200mm WIDE

panel

1250mm WIDE

panel

1300mm WIDE

panel

1350mm WIDE

panel

1400mm WIDE

panel

1450mm WIDE

panel

1500mm WIDE

panel

1550mm WIDE

panel

1600mm WIDE

Glass Hinge and Gate Panel Sizes

panel

Glass Hinge Panel
500mm WIDE

panel

Glass Hinge Panel
900mm WIDE

panel

Glass Hinge Panel
1300mm WIDE

panel

Glass Hinge Panel
1450mm WIDE

panel

Glass Hinge Panel
1600mm WIDE

panel

Glass Gate Panel
900mm WIDE
1200mm HIGH
10mm thick glass

Scenik Glass Balustrade

scenik-balustrade

Scenik frameless glass fencing is constructed using 1000mm high by 12mm thick toughened safety glass with polished bevel edges.

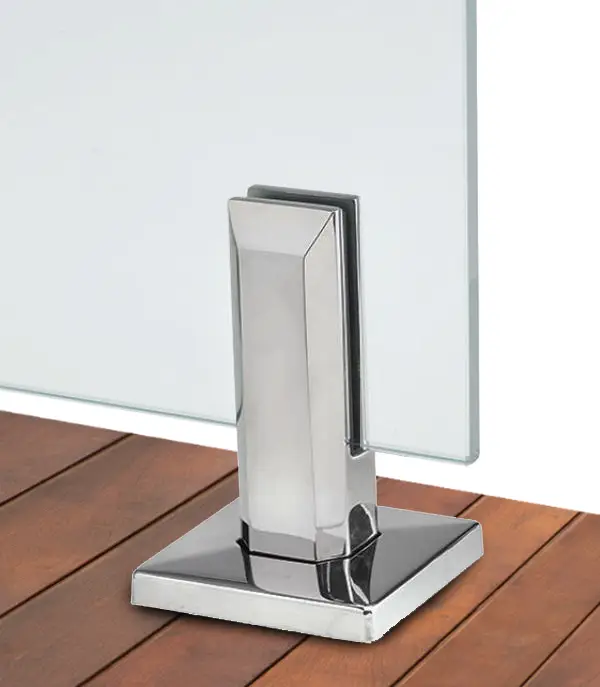

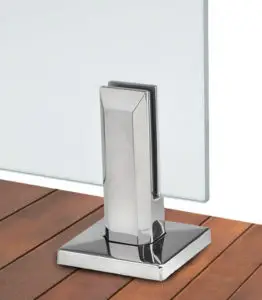

The panels are fitted into corrosion resistant Square stainless steel spigots which can be installed on a variety of surfaces, including finished tiled areas, pavers, timber decks, across landscaped areas, making them a truly versatile option for pools, water features, patios and decking, and natural settings.

The modern architectural look of the system works perfectly with any property to give create a simply beautiful effect without the issues of attaching the glass in or to the ground. The Maximum span that the balustrading has been engineered for is 1400mm panels.

Glass Balustrade Panel Sizes

panel

600mm WIDE

panel

700mm WIDE

panel

900mm WIDE

panel

1000mm WIDE

panel

1200mm WIDE

panel

1300mm WIDE

panel

1400mm WIDE

Handrail

panel

5800mm RHS Handrail, 25 x 21mm
Polish Finish

NZS:4224/2016 for balustrade where you have a fall of over 1m you will need to select our handrail option

Specs

Available in 5800mm or 2900mm lengths; High Polish finish

  • Slimline stylish profile – caps over 12mm thick glass
  • 1.2mm wall thickness
  • 12 x 12mm glazing pocket: silicone onto glass or use in conjunction with glazing rubber
  • Stainless Steel 316L – low carbon stainless

Clamps

panel

Small Rigi Clamp

  • Stainless Steel
  • Polish finish available
  • Friction fitting
  • Suitable for 12mm Glass

panel

Wall Rigi Clamp

  • Stainless steel 316
  • Polish finish available
  • Brace panels to a wall or post
  • Suitable for 12mm glass

panel

90 Degree Rigi Clamp

  • Stainless Steel 316
  • Polish finish available
  • Friction fitting
  • Suitable for 12mm glass

Features

12mm toughened safety glass

New Zealand standards compliant

20 year warranty

DIY instructions included

Installation tools required:

scenik-features-tools

Scenik Resources

Click the buttons below to download

scenik-spigot-1

scenik-spigot-2

scenik-spigot-3

Scenik can help turn your design into reality.

Fencing Calculator

3D Custom Builder

Introducing EnduroShield®

EnduroShield is an invisible, non-stick coating that reduces cleaning time by up to 90%.
Application is a simple process of spraying the liquid coating onto a clean surface to
provide a permanent* protective bond.
